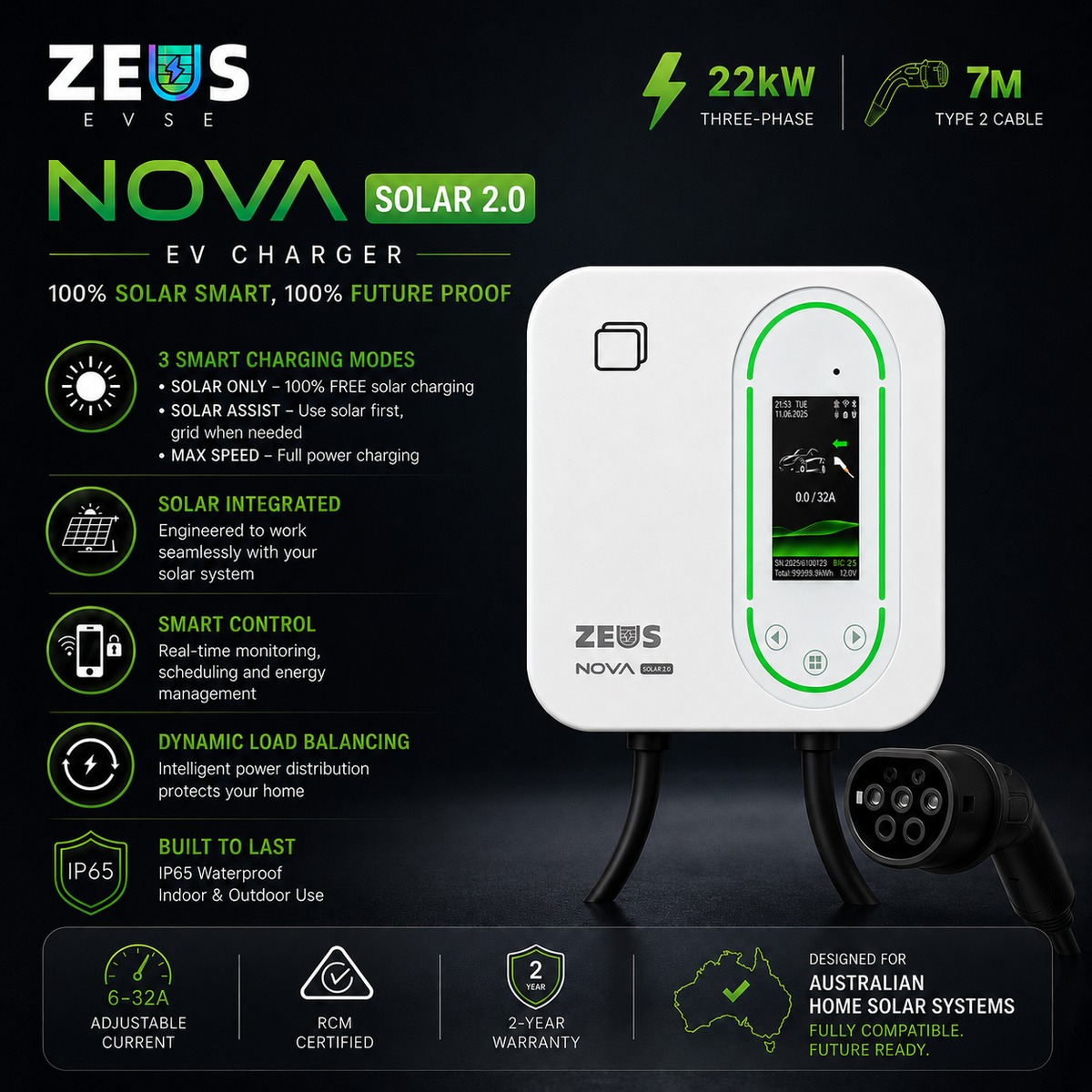

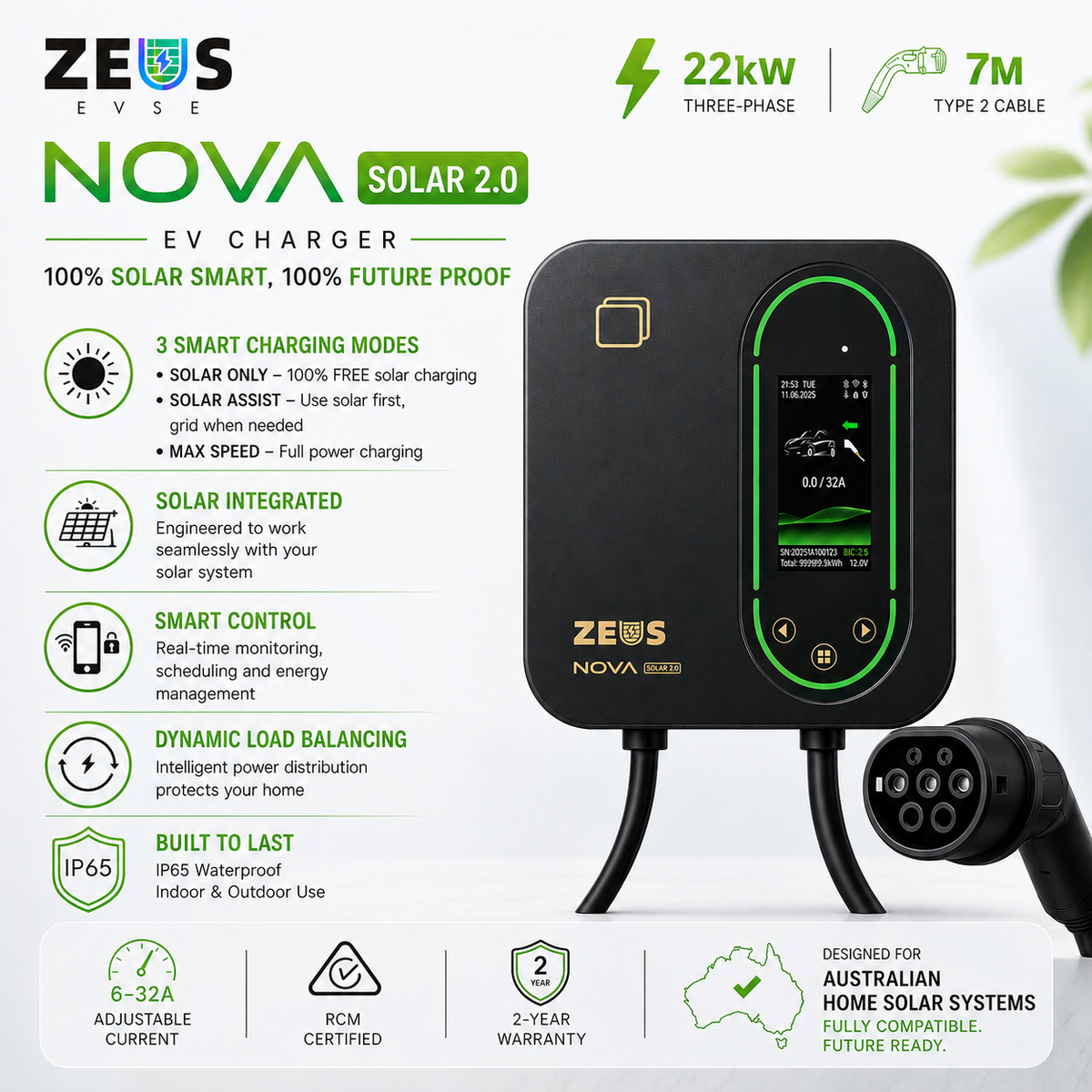

ZEUS Nova Solar 2.0 Smart EV Charger | 22kW OCPP

$1,599.00 AUD
$1,599.00 AUD
Tax included. Shipping calculated at checkout.

Charge smarter and make better use of your solar energy with the Zeus Nova Solar 2.0.

Designed for Australian homes and businesses, the Nova Solar 2.0 is a 22kW single-phase smart EV charger featuring intelligent solar charging, OCPP connectivity and flexible App control. It automatically adjusts EV charging based on available solar generation and household energy usage, helping you maximise self-generated solar power and reduce reliance on the grid.

Color:
25 In Stock

Three Smart Charging Modes

Solar Only
Prioritises surplus solar energy for EV charging, helping maximise the use of your own solar generation.

Solar Assist
Combines available solar energy with grid power when required for more consistent charging.

Max Speed
Charges your EV at the maximum available charging rate when speed is the priority.

Key Features

  • 22kW Three Phase
  • 7m Type 2 Plug
  • Solar Smart Charging
  • OCPP 1.6 Support
  • App Control & Remote Monitoring
  • 6A–32A Adjustable Charging Current
  • Scheduled Charging
  • Dynamic Load Management
  • RFID Access Control
  • Suitable for EVs & PHEVs
  • RCM Compliant
  • 2-Year Warranty

Smarter Solar EV Charging

With compatible energy monitoring, Nova Solar 2.0 can dynamically manage charging according to your home's electricity consumption and available solar generation. Instead of simply charging your vehicle as a normal household load, the charger can intelligently adjust its charging output to make better use of surplus solar energy.

OCPP Connectivity

Built-in OCPP 1.6 support provides greater flexibility for smart charging management and integration with compatible OCPP platforms, making Nova Solar 2.0 suitable for both residential and selected commercial applications.

Electrical Specifications

  • Model: EVE22W
  • Phase: Three Phase
  • Rated Voltage: AC 400V
  • Input Frequency: 50/60Hz
  • Maximum Output Current: 32A
  • Maximum Output Power: 22kW
  • Cable Specification: 3 × 6mm²
  • Charging Interface: Type 2 (IEC 62196-2)

Protection

  • Over-voltage Protection
  • Under-voltage Protection
  • Overload Protection
  • Short Circuit Protection
  • Leakage Protection
  • Over-temperature Protection
  • Lightning Protection

Functions & Features

  • LED Indicators: Yes
  • LCD Display: 3.0-inch
  • RCMU: Type B (AC 30mA + DC 6mA)
  • Current Adjustment: Yes
  • RFID: Yes
  • Wi-Fi / Bluetooth: Yes (Wi-Fi 2.4GHz)

Working Environment

  • Protection Rating: IP65
  • Operating Temperature: -30°C to +55°C
  • Relative Humidity: ≤95% RH
  • Operating Elevation: ≤2,000m
  • Cooling: Natural Air Cooling
  • Standby Power Consumption: <5W

Mechanical Specifications

  • Charging Cable: 7m
  • Dimensions: 180 × 180 × 70mm
  • Weight: ≤6kg
  • Colour: White / Black
  • Material: PC

Standards & Certification

  • Standard: IEC 61851
  • Certification: CE, RoHS, RCM Compliant

Standard 2-year Warranty
